TBLC 90-124 | TRACO POWER
Power supply, 24 to 28 VDC, 3.75 A, 90 W, TBLC 90-124
Unit Price (€ / pc.)
88.6312 € *
Available in 7 Days: 284 pcs. - if ordered today

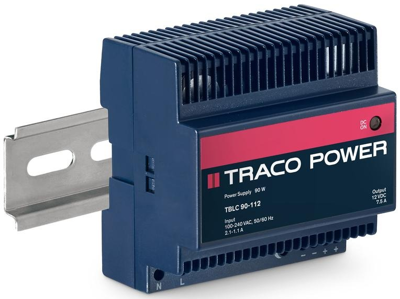

Switching power supply, TBLC 90-124, TRACO
These new power supplies for DIN rail mounting are designed for industrial and residential applications. They are less expensive than the existing TBL series, with similar electrical specifications. They also fully comply with the new standby power and efficiency requirements (ECO standard). They are designed for connection as Class II devices, so that the protective earth connection is not required. Due to their small dimensions, they can be mounted in depth in flat racks. Their dimensions comply with the DIN 43 880 standard.
Features
- Low profile housing, module depth only 59.5 mm
- Suitable for mounting in building installation panels
- Low output ripple and spikes
- Full compliance with ECO standard
- Suitable for household appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 24 to 28 VDC | |
| Depth | 89.5 mm | |
| Output current | 3.75 A | |
| Width | 90 mm | |
| Number of outputs | 1 | |
| Height | 59.5 mm | |
| Degree of protection (IP) | IP20 | |
| Power | 90 W | |
| efficiency | 90 % | |
| Input voltage AC | 85-264 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
