TBLC 90-112 | TRACO POWER
Power supply, 12 to 16 VDC, 7.5 A, 90 W, TBLC 90-112
Unit Price (€ / pc.)
96.8065 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
96.81 € *
Price list
Quantity
Price per unit*
1 pcs.
96.8065 €
10 pcs.
87.1199 €
*incl. VAT plus shipping costs
**Subject to prior sale

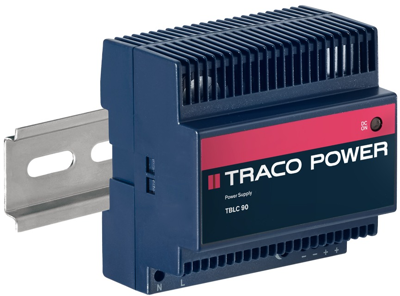

Power supply, TBLC 90-112, Traco
This power supply is designed for industrial and residential applications. It is intended for connection as a Class II device, so the protective earth connection is not required. The device can be mounted in shallow racks due to its small dimensions in depth.
Features
- High power density in flat housing, module depth < 55 mm
- Suitable for installation in domestic installation panels
- Very high efficiency and low standby power
- Low output ripple and spikes
- For distributed power
- Operating temperature range: -25°C to +70°C
Applications
- Household applications
- Industrial application
Technical specifications
| Degree of protection (IP) | IP20 | |
| Depth | 89.5 mm | |
| Output voltage DC | 12 to 16 VDC | |
| Output current | 7.5 A | |
| Width | 90 mm | |
| Height | 59.5 mm | |
| Power | 90 W | |
| Number of outputs | 1 | |
| efficiency | 90 % | |
| Input voltage AC | 85-264 VAC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
