TBL 090-124 | TRACO POWER
Power supply, 24 to 28 VDC, 3.75 A, 90 W, TBL 090-124
Unit Price (€ / pc.)
107.3856 € *
Available in 10 days: 117 pcs. - if ordered today
Total Price:
107.39 € *
Price list
Quantity
Price per unit*
1 pcs.
107.3856 €
10 pcs.
96.6280 €
*incl. VAT plus shipping costs
Subject to prior sale

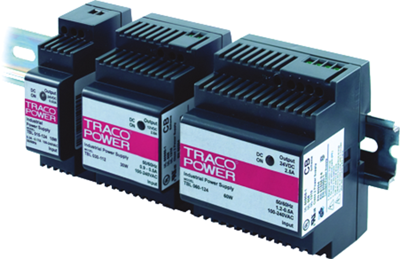

Industrial switching mode power supplies, type Traco TBL.
For snap-on mounting on DIN rail, flat module housing (55 mm)

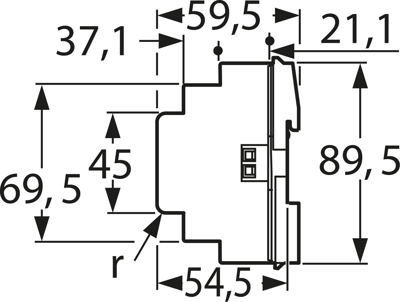

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 89.5 mm | |
| Degree of protection (IP) | IP20 | |
| Output current | 3.75 A | |
| Width | 105 mm | |
| efficiency | 86 % | |
| Number of outputs | 1 | |
| Input voltage AC | 85-264 VAC | |
| Power | 90 W | |
| Output voltage DC | 24 to 28 VDC | |
| Depth | 70 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
