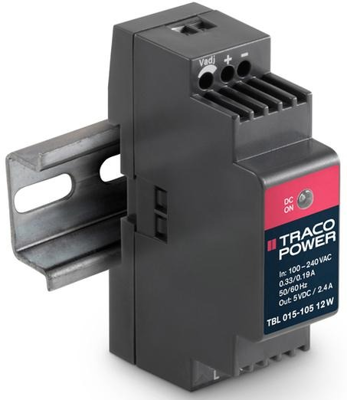

The TBL 015-105 is a small DIN-rail mount power supply which has been designed particularly with building- and factory automation applications in mind. The ultra-compact low profile cases fit in the standardized wall mounted control panels used in the building automation industry. The power supply can be operated at full load across an ambient temperature range of -25°C to +60°C.
Features
Number of outputs | 1 | |
Output voltage DC | 5 to 5.2 VDC | |
Output current | 2.4 A | |
Width | 26.3 mm | |
Input voltage AC | 85-264 VAC | |
Height | 59.5 mm | |
Power | 12 W | |
Degree of protection (IP) | IP20 | |
Depth | 89.5 mm | |
efficiency | 73 % |
Country of origin | CN |
Customs tariff number | 85043180 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
