TMR 2-2410WI | TRACO POWER
DC converter, 9-36 VDC, 1.7 W, 1 output, 3.3 VDC, 71 % efficiency, TMR 2-2410WI
Unit Price (€ / pc.)
18.7187 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
18.72 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7187 €
10 pcs.
16.8623 €
*incl. VAT plus shipping costs
Subject to prior sale

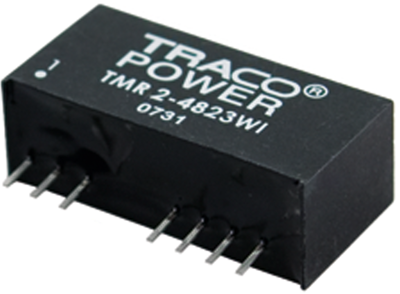

DC/DC converters, Traco TMR 2-2410WI
The TMR-2WI series is a new family of isolated 2W dc-dc converter modules with regulated output, featuring ultra-wide 4:1 input voltage ranges of 9-36 VDC or 18-75 VDC. The product comes in a ultra-compact SIP-9 plastic package. An excellent efficiency up to 84% allows –40°C to +85°C operation temperatures at full load. Further features include remote On/Off control and continuous short circuit protection. Typical applications for these ultra-compact converters are battery operated equipment and distributed power architectures in communication, instrumentation and industrial electronics, everywhere where space on the PCB is critical.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 500 mA | |
| Output voltage DC | 3.3 VDC | |
| Input voltage AC | 9-36 VDC | |
| Power | 1.7 W | |
| efficiency | 71 % | |
| Design | SIP9 | |
| Isolation voltage | 1.5 kV | |
| Length | 21.8 mm | |
| Width | 11.2 mm | |
| Height | 9.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
