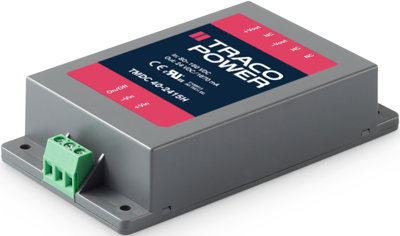

TMDC 40-7212H | TRACO POWER
DC converter, 80-160 VDC, 40 W, 1 output, 12 VDC, 89 % efficiency, TMDC 40-7212H
DC/DC Converter, TMDC 40-7212H, TRACO POWER
The TMDC 40H complements Traco Power’s successful TMDC line of Industrial DC/DC off-board modules. All models provides a high 2:1 input voltage range from 80-160 VDC and a reinforced 3000 VAC isolation voltage as well as fully regulated outputs. Internal filters limit conducted and radiated emissions (EN 55032 class A) but also increase the modules EMC immunity (EN 55035). The modules comes in fully encapsulated plastic packages and feature a high temperature range from -40° up to 75°C without derating. Latest IT safety certifications (UL 62368-1) and DC-OK and remote on/off functions complete the package to provides an ideal solution for many harsh industrial and 110 VDC battery applications in need of a reinforced isolation to provides a safe SELV output.
Features
- Fully encapsulated chassis mount modules
- Protection against overload
- Undervoltage and short circuit
- DC-OK (LED) and Remote On/Off function
| Output voltage DC | 12 VDC | |
| Output current | 3330 mA | |
| Width | 63.8 mm | |
| Height | 25.6 mm | |
| Power | 40 W | |
| Length | 112 mm | |
| Isolation voltage | 3 kV | |
| Number of outputs | 1 | |
| efficiency | 89 % | |
| Input voltage AC | 80-160 VDC |
| Country of origin | TW |
| Customs tariff number | 85044095 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
