THN 15-4812 | TRACO POWER
DC/DC converter, 18-75 VDC, 15 W, 1 output, 12 VDC, 88 % efficiency, THN 15-4812
Unit Price (€ / pc.)
41.2930 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
41.29 € *
Price list
Quantity
Price per unit*
1 pcs.
41.2930 €
10 pcs.
37.1756 €
*incl. VAT plus shipping costs
**Subject to prior sale

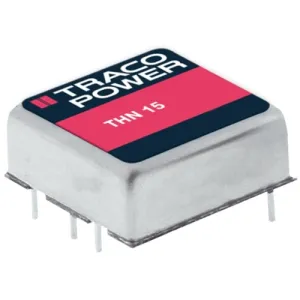

DC converters, type Traco THN 15.
15 W converter; 2 : 1 extended-range inputs, metal housing with insulated base plate, short-circuit protection, low-voltage/overvoltage shutdown. Variable output voltage: ±10 %. Control error: ±0.2 %. Residual ripple: 100 mVpp (75 mVpp at 3.3 and 5.0 V). Operating temperatures: –40 to +85 °C. Insulation voltage:: 1500 VDC. MTBF: 1.6 million h at +25 °C.
Input voltage range from 36 to 75 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): THN 15-4812, 1 x OUT, 12 VDC, 1.3 A, 88 %
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 12 VDC | |
| Output current | 1.3 A | |

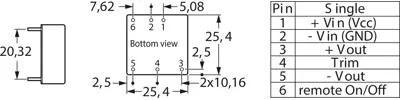

| Design | DIP6 | |
| Width | 25.4 mm | |
| Input voltage AC | 18-75 VDC | |
| Height | 9.9 mm | |
| Isolation voltage | 1.6 kV | |
| Length | 25.4 mm | |
| Power | 15 W | |
| efficiency | 88 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
