THN 15-1210N | TRACO POWER
DC/DC converter, 9-18 VDC, 15 W, 1 output, 3.3 VDC, 88 % efficiency, THN 15-1210N
DC/DC converters, Traco THN 15-1210N

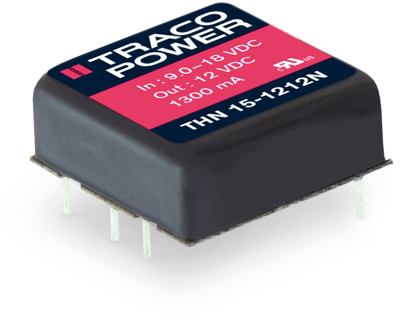

The THN 15N series is the latest generation of high performance 15 Watt DC/DC converters and comes in an encapsulated, shielded 1” x 1” x 0.4” metal package. The new and improved design allows to fully integrate an EN 55032 class A filter and greatly reduces the no-load power consumption (96-336 mW). Advanced circuit design and a high efficiency of up to 91% enable the THN 15N to operate in a temperature range of –40°C to +70°C without derating. All models have a wide 2:1 input voltage range and precisely regulated, isolated output voltages. Further features include remote On/Off and trim able outputs. Together with the latest IT safety certifications (UL 62368-1) typical applications for these converters are mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on PCB is critical.
| Number of outputs | 1 | |
| Output voltage DC | 3.3 VDC | |
| Output current | 4.5 A | |
| Design | DIP6 | |
| Width | 25.4 mm | |
| Input voltage AC | 9-18 VDC | |
| Height | 9.9 mm | |
| Isolation voltage | 1.6 kV | |
| Length | 25.4 mm | |
| Power | 15 W | |
| efficiency | 88 % |
| Country of origin | TW |
| Customs tariff number | 85044095 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
