THD 15-4822N | TRACO POWER

DC converter, 36-75 VDC, 15 W, 2 outputs, ±12 VDC, 90 % efficiency, THD 15-4822N

Order No.: 32C1913
EAN: 4099891311339
MPN:
THD 15-4822N
Series: THD 15N
THD 15-4822N TRACO POWER DC/DC Converters

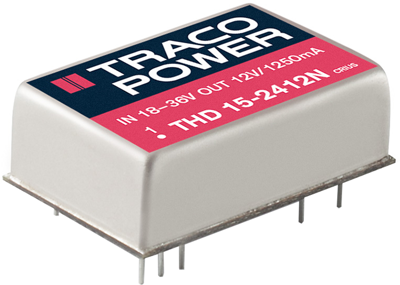

Image may differ
Unit Price (€ / pc.)
57.1200 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
57.12 € *
Price list
Quantity
Price per unit*
1 pcs.
57.1200 €
10 pcs.
51.4080 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC/DC converters, Traco THD 15-4822N

The THD-15N series models provide 15 Watt output power out of a very compact shielded metal case that occupies only 1 inch² of board space. The converters work with a high efficiency over the full load range and draw a very low input current at no load conditions. All models have a wide 2:1 input voltage range and a precisely regulated output voltage. Typical applications for these converters are mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on PCB is critical

Technical specifications
Number of outputs 2
Output current 625 mA
Output voltage DC ±12 VDC
Input voltage AC 36-75 VDC
Power 15 W
efficiency 90 %
Design DIP24
Isolation voltage 1.5 kV
Length 31.8 mm
Width 20.3 mm
Height 10.2 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
