TEN 8-2412WI | TRACO POWER
DC converter, 9-36 VDC, 8 W, 1 output, 12 VDC, 86 % efficiency, TEN 8-2412WI
Unit Price (€ / pc.)
38.4251 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
38.43 € *
Price list
Quantity
Price per unit*
1 pcs.
38.4251 €
10 pcs.
34.5814 €
*incl. VAT plus shipping costs
**Subject to prior sale

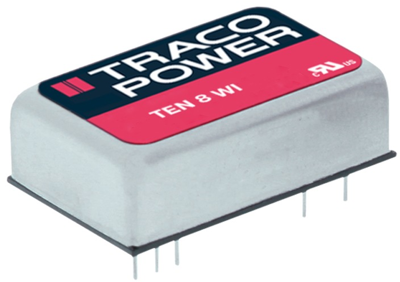

DC converters, type Traco TEN 8..WI.
8.0 W version in DIL 24 package; with 4 : 1 extended-range inputs and zero voltage cut-out. Features: sustained short circuit-proof, shielded metal package and insulated base plate, industrial standard pinning. Adjustment tolerance of the output voltage: ±1.0 %. Residual ripple: 50 mVpp. Operating temperatures: –40 to +85 °C. Insulation voltage: 1500 VDC. MTBF: 1.0 million h/+25 °C.
Input voltage range from 9.0 to 36 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): TEN 8-2412WI, 1 output, 12 VDC, 666 mA, 86 %
Technical specifications
| Number of outputs | 1 | |
| Output current | 666 mA | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 9-36 VDC | |
| Power | 8 W | |
| efficiency | 86 % | |
| Design | DIP24 | |
| Isolation voltage | 1.5 kV | |
| Length | 31.8 mm | |
| Width | 20.3 mm | |
| Height | 10.2 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
