TEL 3-2412 | TRACO POWER
DC/DC converter, 18-36 VDC, 3 W, 1 output, 12 VDC, 81 % efficiency, TEL 3-2412
Unit Price (€ / pc.)
15.2320 € *
Available: 0 pcs.
Next delivery: 10 pcs. on 2025-02-27
Leadtime: 14 Weeks **
Total Price:
15.23 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2320 €
10 pcs.
13.6969 €
*incl. VAT plus shipping costs
**Subject to prior sale

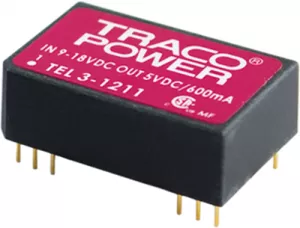

DC converters, type Traco TEL 3-.
3.0 W converter in DiL 24 package, SMD technology, sustained circuit-proof, high efficiency; Input voltage range 2 : 1. Regulated outputs and I/O insulation voltage 1500 VDC. Output voltage adjustment tolerance: ±1.0 %. Control error: on input voltage fluctuation ±0.5 %, on load fluctuation ±0.5 %, ±1.0 % at dual output. Residual ripple: 60 mVpp. Operating temperatures: –40 to +85 °C. Package: plastic, non-conductive, black.
Technical attributes (type, input voltage range, output voltage/output current (± double)): TEL 3-2412, 18 - 36 VDC, 1 x OUT, 12 VDC/250 mA
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 12 VDC | |
| Output current | 250 mA | |
| Design | DIP24 | |
| Width | 20.3 mm | |
| Input voltage AC | 18-36 VDC | |
| Height | 10.2 mm | |
| Isolation voltage | 1.5 kV | |
| Length | 31.8 mm | |
| Power | 3 W | |
| efficiency | 81 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
| Original Packaging | Bar with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
