TDR 3-4811WI | TRACO POWER

DC converter, 36-75 VDC, 3 W, 1 output, 5 VDC, 80 % efficiency, TDR 3-4811WI

Order No.: 26K3368
EAN: 4099891301200
MPN:
TDR 3-4811WI
Series: TDR 3WI

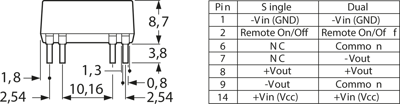

TDR 3-4811WI TRACO POWER DC/DC Converters Image 1

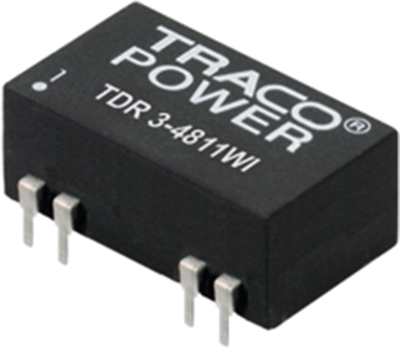

TDR 3-4811WI TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
35.2478 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
35.25 € *
Price list
Quantity
Price per unit*
1 pcs.
35.2478 €
10 pcs.
31.7254 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Traco TDR 3-.

3.0 W version in DIL-14 package; Features: 4 : 1 extended-range input, no basic load necessary, sustained short circuit-proof, regulated outputs, external On/Off. Control error: on input fluctuation max. 0.2 %, on load fluctuation max. 1.0 %. Residual ripple: 30 mVpp (20 MHz bandwidth). I/O insulation voltage: 1500 VDC. Operating temperatures: –40 to +85 °C. Stand-by current: 2.5 mA.

Input voltage range from 18 to 75 VDC.

Technical attributes (type, number of outputs, output voltage, output current, efficiency): TDR 3-4811WI, 1, 5.0 V, 600 mA, 80 %

Technical specifications
Filter Property Value
Number of outputs 1
Output current 600 mA
Output voltage DC 5 VDC
Input voltage AC 36-75 VDC
Power 3 W
efficiency 80 %
Design DIP14
Isolation voltage 1.6 kV
Length 18.9 mm
Width 12.8 mm
Height 8.7 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
