TDR 3-1223WI | TRACO POWER
DC/DC converter, 4.5-18 VDC, 3 W, 2 outputs, ±15 VDC, 81 % efficiency, TDR 3-1223WI
Unit Price (€ / pc.)
36.2593 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
36.26 € *
Price list
Quantity
Price per unit*
1 pcs.
36.2593 €
10 pcs.
32.6298 €
*incl. VAT plus shipping costs
**Subject to prior sale

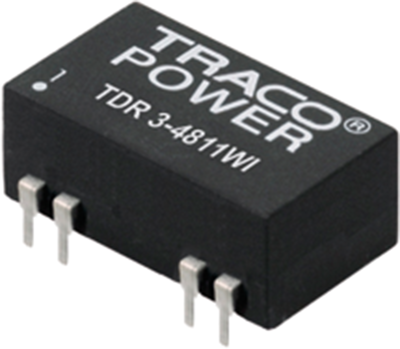

DC converters, type Traco TDR 3-.
3.0 W version in DIL-14 package; Features: 4 : 1 extended-range input, no basic load necessary, sustained short circuit-proof, regulated outputs, external On/Off. Control error: on input fluctuation max. 0.2 %, on load fluctuation max. 1.0 %. Residual ripple: 30 mVpp (20 MHz bandwidth). I/O insulation voltage: 1500 VDC. Operating temperatures: –40 to +85 °C. Stand-by current: 2.5 mA.
Input voltage range from 4.5 to 18 VDC.
Technical attributes (type, number of outputs, output voltage, output current, efficiency): TDR 3-1223WI, 2, ±15 V, ±100 mA, 81 %
Technical specifications
| Number of outputs | 2 | |
| Output voltage DC | ±15 VDC | |
| Output current | 100 mA | |

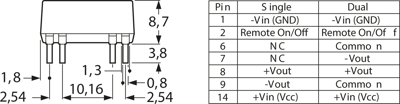

| Design | DIP14 | |
| Width | 12.8 mm | |
| Input voltage AC | 4.5-18 VDC | |
| Height | 8.7 mm | |
| Isolation voltage | 1.6 kV | |
| Length | 18.9 mm | |
| Power | 3 W | |
| efficiency | 81 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
