TXLN 750-124 | TRACO POWER
Power supply, 90-264 VAC/127-375 VDC, 750 W, 1 output, 24 VDC
Order No.: 25K4364
EAN: 7613441064789
MPN:
TXLN 750-124
Unit Price (€ / pc.)
369.0428 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
369.04 € *
Price list
Quantity
Price per unit*
1 pcs.
369.0428 €
10 pcs.
332.1290 €
*incl. VAT plus shipping costs
**Subject to prior sale

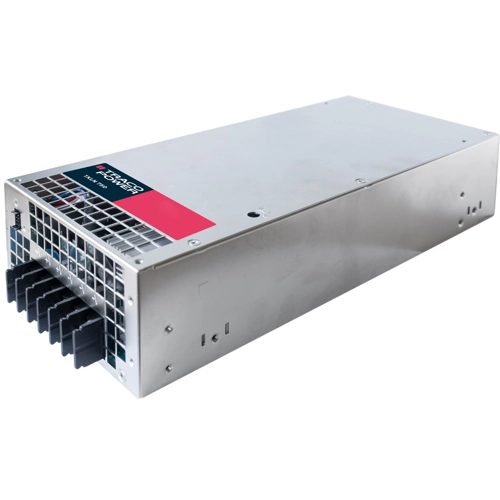

Power supply, TXLN 750-124, Traco
AC/DC-power supply 24 VDC, 31.3 A, metal case. This is an encased power supply designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment.
Features
- Convection cooled (with integrated fan)
- High efficiency up to 90 %
- Short circuit, overvoltage and overload protection
- Universal input 90-264 VAC
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 VDC | |
| Output current | 31300 mA | |
| Design | chassis mounting | |
| Width | 125 mm | |
| Input voltage AC | 90-264 VAC/127-375 VDC | |
| Height | 63 mm | |
| Isolation voltage | 3 kV | |
| Length | 275 mm | |
| Power | 750 W | |
| efficiency | 88 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
