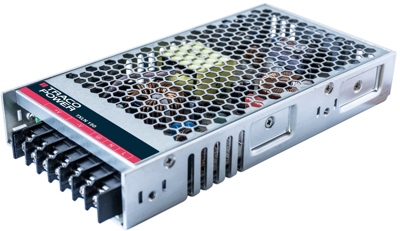

Power supply, TXLN 150-148, Traco
AC/DC-power supply 48 VDC, 3.2 A, metal case. This is an encased power supply designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment.
Features
- Convection cooled (no-fan)
- High efficiency up to 90 %
- Short circuit, overvoltage and overload protection
- Universal input 88-264 VAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage AC | 85-264 VAC/120-375 VDC | |
| Output voltage DC | 48 VDC | |
| efficiency | 90 % | |
| Power | 150 W | |
| Output current | 3.2 A | |
| Depth | 30 mm | |
| Number of outputs | 1 | |
| Width | 99 mm | |
| Length | 188 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
