TXLN 150-105 | TRACO POWER
Power supply, 5 VDC, 30 A, 150 W, TXLN 150-105
Unit Price (€ / pc.)
80.9438 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
80.94 € *
Price list
Quantity
Price per unit*
1 pcs.
80.9438 €
10 pcs.
72.8637 €
*incl. VAT plus shipping costs
**Subject to prior sale

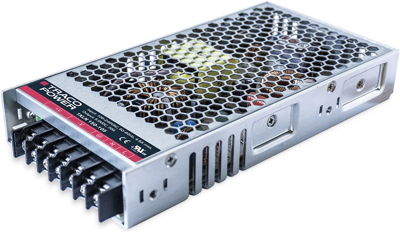

AC/DC Power Supply, TXLN 150-105, TRACO POWER
AC/DC-power supply 5 VDC, 30.0 A, metal case. This is an encased power supply designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment.
Features
- Convection cooled (no-fan)
- Short circuit, overvoltage and overload protection
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 5 VDC | |
| Output current | 30 A | |
| Width | 99 mm | |
| Input voltage AC | 85-264 VAC/120-375 VDC | |
| Length | 188 mm | |
| Power | 150 W | |
| Depth | 30 mm | |
| efficiency | 86 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
