TMPW 50-112-T | TRACO POWER
AC/DC converter, 90-305 VAC/100-430 VDC, 50 W, 1 output, 12 VDC
Unit Price (€ / pc.)
43.9229 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
43.92 € *
Price list
Quantity
Price per unit*
1 pcs.
43.9229 €
10 pcs.
39.5318 €
*incl. VAT plus shipping costs
**Subject to prior sale

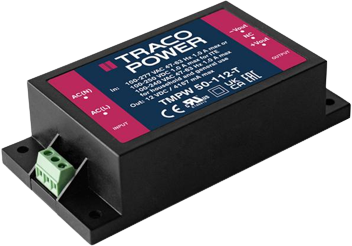

AC/DC Power supply, TMPW 50-112-T, TRACO POWER
The TMPW 50-112-T is a 50 Watt AC/DC series with an extended input range of 90-305 VAC and is suitable for industrial and household/building technology applications and comes in a compact encapsulated plastic case. This product offers an I/O-isolation voltage of 4000 VAC, a high temperature range of -40 to +70°C and is prepared for protection class II applications. Additionally, an internal EN 55032 class B filter saves valuable board space for an otherwise often mandatory external filter setup. An energy efficient design and safety approvals according to IEC/EN/UL 62368-1 and EN 60335-1 make this product suitable for a wide range of industrial and household/building technology applications.
Features
- No load input power
- High efficiency up to 89%
- Protection class II prepared
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 12 VDC | |
| Output current | 4.2 A | |
| Design | chassis mounting | |
| Width | 48.3 mm | |
| Input voltage AC | 90-305 VAC/100-430 VDC | |
| Height | 25.4 mm | |
| Isolation voltage | 4 kV | |
| Length | 97 mm | |
| Power | 50 W | |
| efficiency | 89 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
