TML 40215 | TRACO POWER

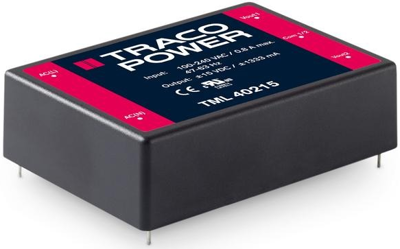

AC/DC converter, 90-264 VAC/100-375 VDC, 40 W, 2 outputs, 15 VDC, TML 40215
Unit Price (€ / pc.)
93.8791 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
93.88 € *
Price list
Quantity
Price per unit*
1 pcs.
93.8791 €
10 pcs.
84.4781 €
*incl. VAT plus shipping costs
Subject to prior sale

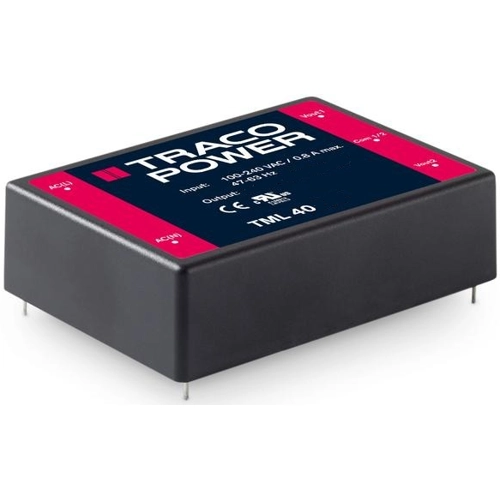

Power modules, type Traco TML.
Switching mode power supply, molded, short-circuit and overload protection, input filter to EN 55022 (class B and FCC, level B)
For PCB mounting, type TML 40.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 1.333 A | |
| Output voltage DC | 15 VDC | |
| Input voltage AC | 90-264 VAC/100-375 VDC | |
| Power | 40 W | |
| efficiency | 83 % | |
| Design | PCB mounting | |
| Isolation voltage | 3 kV | |
| Length | 89 mm | |
| Width | 63.5 mm | |
| Height | 25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
