TML 20212 | TRACO POWER

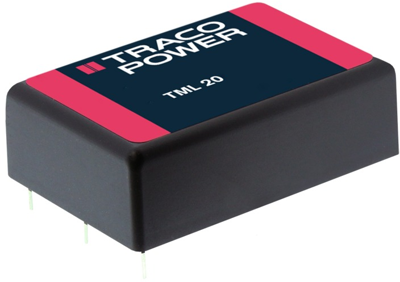

AC/DC converter, 90-264 VAC/100-375 VDC, 20 W, 2 outputs, ±12 VDC

Order No.: 25K4712
EAN: 4099891340254
MPN:
TML 20212
Series: TML
TRACO POWER
default L
Image may differ
Print
Key Specification:
Number of outputs 2
Output current 833 mA
Output voltage DC ±12 VDC
Input voltage AC 90-264 VAC/100-375 VDC
Power 20 W
Show 22 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
60.2259 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Add to Cart
Total Price:
60.23 € *
Price list
Quantity
Price per unit*
1 pcs.
60.2259 €
10 pcs.
54.1926 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Power modules, type Traco TML.

Switching mode power supply, molded, short-circuit and overload protection, input filter to EN 55022 (class B and FCC, level B); Input voltage range: 90 to 264 VAC, 100 to 375 VDC. Line frequency: 47 to 440 Hz. Output voltage adjustment tolerance (symmetrical load): ±2.0 %. Leakage current: max. 0.75 mA. Insulation voltage: 3000 VAC. Safety class TML 20/TML 40: I/II to IEC/EN 60536.

For PCB mounting, type TML 20.

Operating temperatures: –25 to +60 °C. Weight:110 g.

Technical attributes (type, max. output power, number of outputs, output voltage, output current): TML 20212, 20 W, 2 outputs, ±12 VDC, ±833 mA
Technical specifications
Number of outputs 2
Output voltage DC ±12 VDC
Output current 833 mA
Design PCB mounting
Width 48 mm
Input voltage AC 90-264 VAC/100-375 VDC
Height 22 mm
Isolation voltage 3 kV
Length 70 mm
Power 20 W
efficiency 82 %
Show similar products 0
Logistics
Country of origin TW
Customs tariff number 85044083
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Variations
Design
Input voltage AC
Width
Unit:
Length
Unit:
Output current
Unit:
Height
Unit:
Output voltage DC
Number of outputs
efficiency
Power
Unit:
Isolation voltage
Unit:
1 item in 22 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Design
Input voltage AC
Width
Length
Output current
Height
Output voltage DC
Number of outputs
efficiency
Power
Isolation voltage
AC/DC converter, 90-264 V, 20 W, 1 output, 5 V
AC/DC converter, 90-264 V, 20 W, 1 output, 5 V
Order No.:
 25K4702
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 20105
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 57.93 € *
1 pcs.
57.9292 €
10 pcs.
52.1220 €
PCB module
90-264 V
48 mm
70 mm
4 A
22 mm
5 V
1
75 %
20 W
3 kV
AC/DC converter, 90-264 V, 20 W, 1 output, 24 V
AC/DC converter, 90-264 V, 20 W, 1 output, 24 V
Order No.:
 25K4708
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 20124
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 57.93 € *
1 pcs.
57.9292 €
10 pcs.
52.1220 €
PCB module
90-264 V
48 mm
70 mm
840 mA
22 mm
24 V
1
75 %
20 W
3 kV
AC/DC converter, 90-264 V, 40 W, 2 outputs, 5 V
AC/DC converter, 90-264 V, 40 W, 2 outputs, 5 V
Order No.:
 25K4730
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40205
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 92.03 € *
1 pcs.
92.0346 €
10 pcs.
82.8240 €
PCB module
90-264 V
63.5 mm
89 mm
400 mA
25 mm
5 V
2
84 %
40 W
3 kV
AC/DC converter, 90-264 VAC/100-375 VDC, 40 W, 2 outputs, 15 VDC
AC/DC converter, 90-264 VAC/100-375 VDC, 40 W, 2 outputs, 15 VDC
Order No.:
 25K4734
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40215
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 92.03 € *
1 pcs.
92.0346 €
10 pcs.
82.8240 €
PCB mounting
90-264 VAC/100-375 VDC
63.5 mm
89 mm
1.333 A
25 mm
15 VDC
2
83 %
40 W
3 kV
AC/DC converter, 90-264 V, 40 W, 3 outputs, 5/15 VDC
AC/DC converter, 90-264 V, 40 W, 3 outputs, 5/15 VDC
Order No.:
 25K4742
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40515
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 108.90 € *
1 pcs.
108.8969 €
10 pcs.
98.0084 €
PCB module
90-264 V
63.5 mm
89 mm
5 A
25 mm
5/15 VDC
3
84 %
40 W
3 kV
AC/DC converter, 90-264 V, 20 W, 3 outputs, 5/15 VDC
AC/DC converter, 90-264 V, 20 W, 3 outputs, 5/15 VDC
Order No.:
 25K4718
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 20515
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 69.20 € *
1 pcs.
69.1985 €
10 pcs.
62.2727 €
PCB module
90-264 V
48 mm
70 mm
2.8 A
22 mm
5/15 VDC
3
84 %
20 W
3 kV
AC/DC converter, 90-264 V, 40 W, 1 output, 5 V
AC/DC converter, 90-264 V, 40 W, 1 output, 5 V
Order No.:
 25K4722
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40105
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 85.53 € *
1 pcs.
85.5253 €
10 pcs.
76.9692 €
PCB module
90-264 V
63.5 mm
89 mm
8 A
25 mm
5 V
1
75 %
40 W
3 kV
AC/DC converter, 90-264 V, 14.9 W, 1 output, 3.3 V
AC/DC converter, 90-264 V, 14.9 W, 1 output, 3.3 V
Order No.:
 25K4700
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 20103
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 57.93 € *
1 pcs.
57.9292 €
10 pcs.
52.1220 €
PCB module
90-264 V
48 mm
70 mm
4.5 A
22 mm
3.3 V
1
84 %
14.9 W
3 kV
AC/DC converter, 90-264 VAC/100-375 VDC, 40 W, 1 output, 15 VDC
AC/DC converter, 90-264 VAC/100-375 VDC, 40 W, 1 output, 15 VDC
Order No.:
 25K4726
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40115
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 85.53 € *
1 pcs.
85.5253 €
10 pcs.
76.9692 €
PCB mounting
90-264 VAC/100-375 VDC
63.5 mm
89 mm
2.666 A
25 mm
15 VDC
1
83 %
40 W
3 kV
AC/DC converter, 90-264 V, 20 W, 1 output, 12 V
AC/DC converter, 90-264 V, 20 W, 1 output, 12 V
Order No.:
 25K4704
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 20112
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 57.93 € *
1 pcs.
57.9292 €
10 pcs.
52.1220 €
PCB module
90-264 V
48 mm
70 mm
1.67 A
22 mm
12 V
1
84 %
20 W
3 kV
AC/DC converter, 90-264 V, 40 W, 3 outputs, 5/12 VDC
AC/DC converter, 90-264 V, 40 W, 3 outputs, 5/12 VDC
Order No.:
 25K4740
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40512
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 108.90 € *
1 pcs.
108.8969 €
10 pcs.
98.0084 €
PCB module
90-264 V
63.5 mm
89 mm
5 A
25 mm
5/12 VDC
3
84 %
40 W
3 kV
AC/DC converter, 90-264 V, 40 W, 1 output, 12 V
AC/DC converter, 90-264 V, 40 W, 1 output, 12 V
Order No.:
 25K4724
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40112
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 85.53 € *
1 pcs.
85.5253 €
10 pcs.
76.9692 €
PCB module
90-264 V
63.5 mm
89 mm
3.333 A
25 mm
12 V
1
75 %
40 W
3 kV
AC/DC converter, 90-264 V, 40 W, 2 outputs, 12 V
AC/DC converter, 90-264 V, 40 W, 2 outputs, 12 V
Order No.:
 25K4732
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40212
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 92.03 € *
1 pcs.
92.0346 €
10 pcs.
82.8240 €
PCB module
90-264 V
63.5 mm
89 mm
1.666 A
25 mm
12 V
2
75 %
40 W
3 kV
AC/DC converter, 90-264 V, 40 W, 1 output, 3.3 V
AC/DC converter, 90-264 V, 40 W, 1 output, 3.3 V
Order No.:
 25K4720
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40103
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 85.53 € *
1 pcs.
85.5253 €
10 pcs.
76.9692 €
PCB module
90-264 V
63.5 mm
89 mm
8 A
25 mm
3.3 V
1
84 %
40 W
3 kV
AC/DC converter, 90-264 V, 20 W, 1 output, 15 V
AC/DC converter, 90-264 V, 20 W, 1 output, 15 V
Order No.:
 25K4706
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 20115
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 57.93 € *
1 pcs.
57.9292 €
10 pcs.
52.1220 €
PCB module
90-264 V
48 mm
70 mm
1.34 A
22 mm
15 V
1
84 %
20 W
3 kV
AC/DC converter, 90-264 V, 20 W, 2 outputs, 15 V
AC/DC converter, 90-264 V, 20 W, 2 outputs, 15 V
Order No.:
 25K4714
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 20215
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 60.23 € *
1 pcs.
60.2259 €
10 pcs.
54.1926 €
PCB module
90-264 V
48 mm
70 mm
667 mA
22 mm
15 V
2
75 %
20 W
3 kV
AC/DC converter, 90-264 V, 40 W, 2 outputs, 5/12 VDC
AC/DC converter, 90-264 V, 40 W, 2 outputs, 5/12 VDC
Order No.:
 25K4736
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40252
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 92.03 € *
1 pcs.
92.0346 €
10 pcs.
82.8240 €
PCB module
90-264 V
63.5 mm
89 mm
5 A
25 mm
5/12 VDC
2
84 %
40 W
3 kV
AC/DC converter, 90-264 V, 20 W, 2 outputs, 5 V
AC/DC converter, 90-264 V, 20 W, 2 outputs, 5 V
Order No.:
 25K4710
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 20205
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 60.23 € *
1 pcs.
60.2259 €
10 pcs.
54.1926 €
PCB module
90-264 V
48 mm
70 mm
2 A
22 mm
5 V
2
75 %
20 W
3 kV
AC/DC converter, 90-264 V, 40 W, 2 outputs, 5/24 VDC
AC/DC converter, 90-264 V, 40 W, 2 outputs, 5/24 VDC
Order No.:
 25K4738
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 40254
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 92.03 € *
1 pcs.
92.0346 €
10 pcs.
82.8240 €
PCB module
90-264 V
63.5 mm
89 mm
5 A
25 mm
5/24 VDC
2
84 %
40 W
3 kV
AC/DC converter, 90-264 VAC/100-375 VDC, 20 W, 2 outputs, ±12 VDC
AC/DC converter, 90-264 VAC/100-375 VDC, 20 W, 2 outputs, ±12 VDC
Order No.:
 25K4712
Manufacturer:
 TRACO POWER
Manufacturer SKU:
 TML 20212
Available: 0 pcs. Leadtime: 12 Weeks **
Total Price: 60.23 € *
1 pcs.
60.2259 €
10 pcs.
54.1926 €
PCB mounting
90-264 VAC/100-375 VDC
48 mm
70 mm
833 mA
22 mm
±12 VDC
2
82 %
20 W
3 kV
