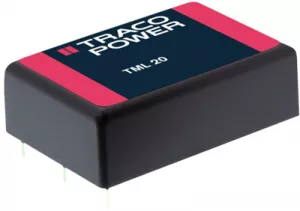

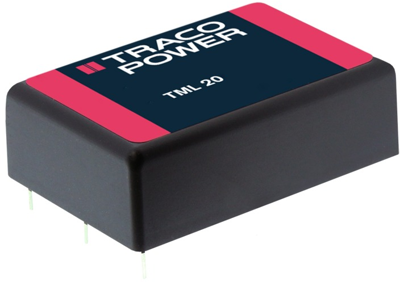

TML 20512 | TRACO POWER
AC/DC converter, 90-264 VAC/100-375 VDC, 20 W, 3 outputs, 5/12 VDC, TML 20512
Unit Price (€ / pc.)
70.5789 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
70.58 € *
Price list
Quantity
Price per unit*
1 pcs.
70.5789 €
10 pcs.
63.5222 €
*incl. VAT plus shipping costs
Subject to prior sale
Power modules, type Traco TML.
Switching mode power supply, molded, short-circuit and overload protection, input filter to EN 55022 (class B and FCC, level B)
For PCB mounting, type TML 20.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 3 | |
| Output current | 2.8 A | |
| Output voltage DC | 5/12 VDC | |
| Input voltage AC | 90-264 VAC/100-375 VDC | |
| Power | 20 W | |
| efficiency | 81 % | |
| Design | PCB mounting | |
| Isolation voltage | 3 kV | |

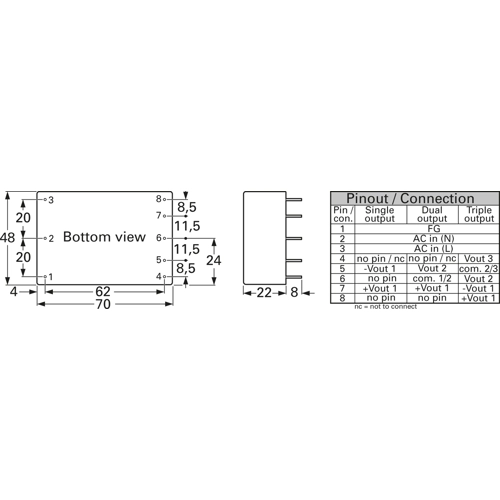

| Length | 70 mm | |
| Width | 48 mm | |
| Height | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
