171 16 220 | Thora
Rotational damper 2.20 N/cm ±0.35, orange, 171 16 220
Order No.: 89B5059
EAN: 4099889505320
MPN:
171 16 220
RD-CF3D 2,20Ncm
Unit Price (€ / pc.)
0.7259 € *
Available: 0 pcs.
Leadtime: On Request **

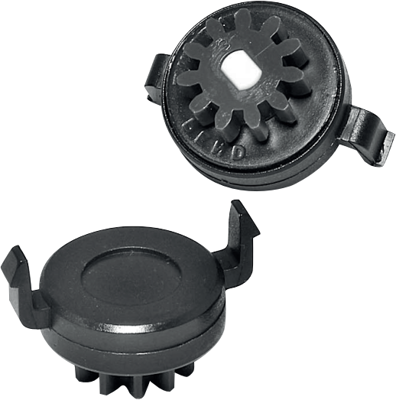

Rotational dampers, type Thora RD.
In ultrasonically welded housing; Material: pinion, rotor (POM), base (PA66GF13), bucket (PA66), O-ring (silicon), liquid (silicon oil). Operating temperatures: –40 to +90 °C (after 20 rpm, at +20 °C). Useful life: 100000 cycles (1 cycle = 1 x forward 150 mm, 1 x reverse 150 mm without pause at 200 rpm).
Rotational dampers, type RD-CF3D.
With pinion, module 0.8 with 11 teeth, 4.5 mm height; Mounting: clips (on rear side).
Technical attributes (type, torque, color code): 171 16 220, 2.20 N/cm ±0.35, orange
Technical specifications
| Colour | orange | |
| Outer diameter | 40 mm | |
| Type of mounting | clip-on mounting, rear side | |
| Height | 8.25 mm | |
| Version | rotational damper | |
| min. operating temperature | -40 °C | |
| Lifetime | 100.000 cycles | |
| Material | pinion, rotor (POM), base (PA66GF13), cup (PA66), O-ring (silicone), liquid (silicone oil) | |
| For grommet type | RD-CF3D-220 | |
| Torque | 2.2 Ncm | |
| max. operating temperature | 90 °C | |
| Inner diameter | 10.4 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
