171 10 110L | Thora
Rotational damper 11 N/cm ±1.5, counterclockwise FW, 171 10 110R
Active
Total price
(
5.4145 €
* / pcs.)
5.41 €
Currently not in stock, we will order for you
Please send price/quantity requests to info@buerklin.com
Description
Product by Thora at Bürklin Elektronik

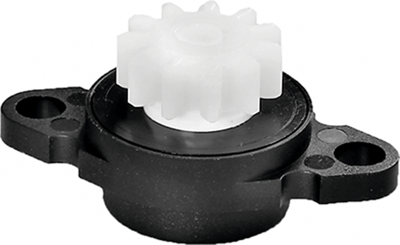

Rotational dampers, type Thora RD-DA.
With pinion, module 1.25 with 11 teeth, for screw mounting; Housing/pinion material: PA66 GF13/POM. Operating temperatures: –30 to +90 °C. Useful life: 15,000 cycles.
Technical attributes (type, torque, free wheeling (FW)): 171 10 110L, 11 N/cm ±1.5, counterclockwise FW

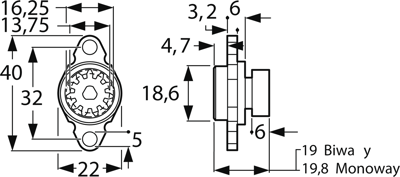

Technical specifications
| Version | Rotational damper | |
| Outer diameter | 40 mm | |
| Type of mounting | Mounting flange | |
| Torque | 11 Ncm | |
| Colour | black | |
| For grommet type | RD-DA-110-L | |
| Height | 19.8 mm | |
| Inner diameter | 13.75 mm | |
| Lifetime | 15.000 cycles | |
| Hole diameter | 5 mm | |
| Material | housing PA66 GF13, pinion POM | |
| max. operating temperature | 90 °C | |
| min. operating temperature | -30 °C |
Logistics
| Country of origin | IT |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Order No.:
89B5060
Manufacturer:
Thora
Manufacturer SKU
171 10 030
10 pcs.
4.0936 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19 mm
5 mm
green
-30 °C
90 °C
3 Ncm
Order No.:
89B5069
Manufacturer:
Thora
Manufacturer SKU
171 10 075R
1 pcs.
5.7477 €
10 pcs.
5.1289 €
50 pcs.
4.6172 €
100 pcs.
4.3197 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19.8 mm
5 mm
black
-30 °C
90 °C
7.5 Ncm
Order No.:
89B5075
Manufacturer:
Thora
Manufacturer SKU
171 10 075L
10 pcs.
5.4145 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19.8 mm
5 mm
black
-30 °C
90 °C
7.5 Ncm
Order No.:
89B5071
Manufacturer:
Thora
Manufacturer SKU
171 10 150R
1000 pcs.
2.0944 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19.8 mm
5 mm
black
-30 °C
90 °C
15 Ncm
Order No.:
89B5062
Manufacturer:
Thora
Manufacturer SKU
171 10 055
10 pcs.
4.0936 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19 mm
5 mm
black
-30 °C
90 °C
5.5 Ncm
Order No.:
89B5066
Manufacturer:
Thora
Manufacturer SKU
171 10 030R
1 pcs.
4.3197 €
10 pcs.
3.8437 €
50 pcs.
3.4748 €
100 pcs.
3.2487 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19.8 mm
5 mm
green
-30 °C
90 °C
3 Ncm
Order No.:
89B5061
Manufacturer:
Thora
Manufacturer SKU
171 10 040
10 pcs.
4.0936 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19 mm
5 mm
green
-30 °C
90 °C
4 Ncm
Order No.:
89B5065
Manufacturer:
Thora
Manufacturer SKU
171 10 150
1 pcs.
5.3669 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19 mm
5 mm
pink
-30 °C
90 °C
15 Ncm
Order No.:
89B5064
Manufacturer:
Thora
Manufacturer SKU
171 10 110
1 pcs.
5.3669 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19 mm
5 mm
gray
-30 °C
90 °C
11 Ncm
Order No.:
89B5063
Manufacturer:
Thora
Manufacturer SKU
171 10 075
1 pcs.
5.0337 €
10 pcs.
4.4625 €
50 pcs.
4.0579 €
100 pcs.
3.7842 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19 mm
5 mm
white
-30 °C
90 °C
7.5 Ncm
Order No.:
89B5076
Manufacturer:
Thora
Manufacturer SKU
171 10 110L
10 pcs.
5.4145 €
housing PA66 GF13, pinion POM
Mounting flange
Rotational damper
40 mm
13.75 mm
19.8 mm
5 mm
black
-30 °C
90 °C
11 Ncm
