TL431CLPR | Texas Instruments

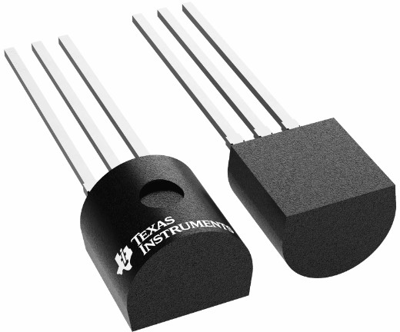

Voltage Reference IC, TO-92, TL431CLPR
Order No.: 49S6750
EAN: 4099879103949
MPN:
TL431CLPR
Unit Price (€ / pc.)
0.2856 € *
Available: 285 pcs.
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2856 €
10 pcs.
0.2499 €
100 pcs.
0.2261 €
500 pcs.
0.1785 €
1000 pcs.
0.1428 €
*incl. VAT plus shipping costs
Subject to prior sale
IC, TL431CLPR, Texas Instruments
The TL431CLPR device is a three-terminal adjustable shunt regulator, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. Active output circuitry provides a very sharp turn-on characteristic, making this device excellent replacement for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies.
Features
- Low output noise
- Operation from 0 °C to 70 °C
Applications
- Adjustable voltage and current referencing
- Secondary side regulation in flyback SMPSs
- Voltage monitoring
- Comparator with integrated reference
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-92 | |
| Assembly | THT | |
| Input voltage | 37 V | |
| Output voltage DC | 2.5-36 V | |
| Output current | 100 mA | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
