LM4040C25IDBZT | Texas Instruments

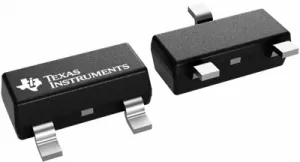

Voltage Reference IC, SOT-23-3, LM4040C25IDBZT
Order No.: 52S2125
EAN: 4099879103970
MPN:
LM4040C25IDBZT
Unit Price (€ / pc.)
1.1198 € *
Available: 0 pcs.
Available in 5 Days: 1,550 pcs.
Leadtime: 1 Week **
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1198 €
100 pcs.
0.9948 €
*incl. VAT plus shipping costs
**Subject to prior sale
Voltage regulator, LM4040C25IDBZT, Texas Instruments
The LM4040C25IDBZT is a shunt voltage references areversatile, easy-to-use references that cater to a vast array of applications. The 2-pinfixed-output device requires no external capacitors for operation and is stable with all capacitiveloads. Additionally, the reference offers low dynamic impedance, low noise, and low temperaturecoefficient to ensure a stable output voltage over a wide range of operating currents andtemperatures. This product uses fuse and Zener-zap reverse breakdown voltage trim during wafer sortto offer four output voltage tolerances, ranging from 0.1 % (max) for the A grade to 1 % (max) forthe D grade.
Features
- No output capacitor required
- Tolerates capacitive loads
- 35 µVrms Low output noise
Applications
- Portable, battery-powered equipment
- Data acquisition systems
- Energy management
- Precision audio components
- Process controls
- Instrumentation
Technical specifications
| Output voltage DC | 2.5 V | |
| Output current | 15 mA | |
| Enclosure | SOT-23-3 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 250 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
