INA114BP | Texas Instruments

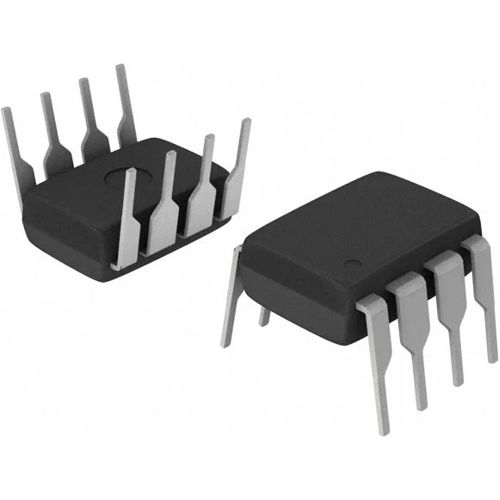

Single instrument amplifier, PDIP-8, INA114BP
Order No.: 70S1092
MPN:
INA114BP
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
15.5771 € *
Available in 5 Days: 250 pcs. - if ordered today
Instrumentation Amplifier, INA114BP, Texas Instruments
The INA114BP is a low-cost, general-purpose instrumentation amplifier offering excellent accuracy. The versatile three-op-amp design and small size make this device an excellent choice for a wide range of applications. A single external resistor sets any gain from 1 to 10,000. Internal input protection withstands up to ±40V without damage. The INA114BP is laser trimmed for very low offset voltage (50µV), low drift (0.3µV/°C), and high common-mode rejection (115dB at G = 1000). The device operates with power supplies as low as 2.25V, allowing use in battery-operated and single 5V supply systems.
Applications
- Surgical equipment
- Actuator
- Multifunction relay
- Train control and management
- Trackside signaling and control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PDIP-8 | |
| Assembly | THT | |
| Number of channels | 1 | |
| Version | instrument amplifier |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
