XTR105UA/2K5 | Texas Instruments

Current transmitter, SOIC-14, Texas Instruments XTR105UA/2K5

Order No.: 66S0002
EAN: 4099879089069
MPN:
XTR105UA/2K5
Series: XTR105
XTR105UA/2K5 Texas Instruments Logic Devices

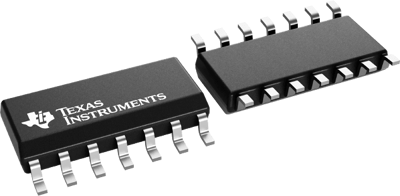

Image may differ
Unit Price (€ / pc.)
2.6180 € *
Available in 5 Days: 11,552 pcs. - if ordered today
Total Price:
2.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.6180 €

Signal conditioner, XTR105UA/2K5, Texas Instruments

The XTR105 is a monolithic 4-20 mA, 2-wire current transmitter with two precision current sources. It provides complete current excitation for platinum RTD temperature sensors and bridges, instrumentation amplifiers, and current output circuitry on a single integrated circuit. Instrumentation amplifier gain can be configured for a wide range of temperature or pressure measurements. Total unadjusted error of the complete current transmitter is low enough to permit use without adjustment in many applications.

Features

  • Low unadjusted error
  • 2 or 3 wire RTF operation
  • Wide supply range: 7.5 V to 36 V

Applications

  • Industrial process control
  • Factory automation
  • Scada remote data acquisition
  • Remote temperature and pressure transducers
Technical specifications
Filter Property Value
Product type current transmitter
min. operating temperature -40 °C
Assembly SMD
Enclosure SOIC-14
max. operating temperature 85 °C
Logistics
Property Value
Country of origin MY
Customs tariff number 85423390
MSL MSL 3
Original Packaging Reel with 2,500 pieces
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
