SN74LS86N | Texas Instruments

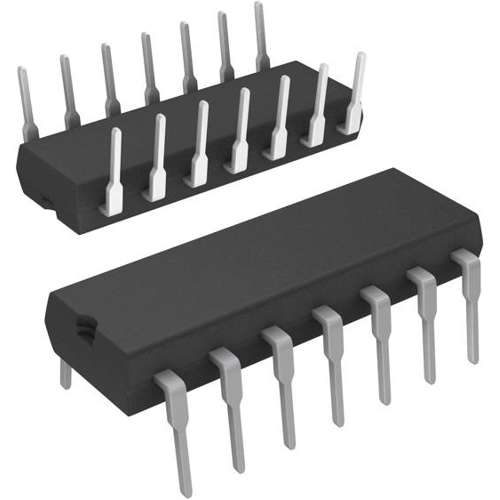

Quad 2-Input Exclusive OR Gate, PDIP-14, Texas Instruments SN74LS86N
Unit Price (€ / pc.)
0.5236 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
0.52 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5236 €
25 pcs.
0.4998 €
100 pcs.
0.4879 €
250 pcs.
0.4522 €
*incl. VAT plus shipping costs
Subject to prior sale
Logic chip, SN74LS86N, Texas Instruments
This device contains four independent 2-input Exclusive-OR gates. A common application is as a true/complement element. If one of the inputs is low, the other input will be reproduced in true form at the output. If one of the inputs is high, the signal on the other input will be reproduced inverted at the output.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C | |
| Assembly | THT | |
| Enclosure | PDIP-14 | |
| Number of channels | 4 | |
| Input voltage | 5.25 V | |
| Product type | Quad 2-Input Exclusive OR Gate |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | MY |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
