SN74LS299N | Texas Instruments

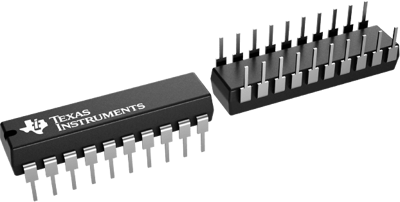

Shift register, SN74LS299N, Texas Instruments

The SN74LS299N is a schottky TTL eight-bit universal register features multiplexed inputs/outputs to achieve full eight-bit data handling in a single 20-pin package. Two function-select inputs and two output control inputs can be used to choose the modes of operation listed in the function table. Synchronous parallel loading is accomplished by taking both function-select lines, SO and S1, high, this places the three-state outputs in a high-impedance state, which permits data that is applied on the input/output lines to be clocked into the register.

Features

• Multiplexed inputs/outputs provide improved bit density
• Operates with outputs enabled or at high Z
• 3-State outputs drive bus lines directly
• Can be cascaded for N-bit word lengths

Applications

• Stacked or push-down registers
• Buffer storage
• Accumulator registers
