SN74LS221N | Texas Instruments

Dual monostable multivibrator, PDIP-16, Texas Instruments SN74LS221N

Order No.: 43S7500
EAN: 4099879085696
MPN:
SN74LS221N
Series: 74LS
SN74LS221N Texas Instruments Logic Devices

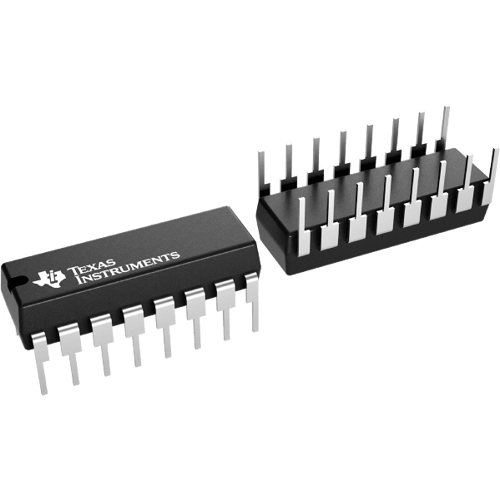

Image may differ
Unit Price (€ / pc.)
0.8211 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
0.8211 €

Monostable multivibrator, SN74LS221N, Texas Instruments

The SN74LS221N is a dual monostable multivibrator with Schmitt-trigger inputs. Each multivibrator features a negative-transitiontriggered input and a positive-transition-triggered input, either of which can be used as an inhibit input.

Features

  • Demonstrate electrical and switching characteristics
  • Overriding clear terminates output pulse
Technical specifications
Filter Property Value
min. operating temperature 0 °C
Assembly THT
Input voltage 5.25 V
Output current 8 mA
max. operating temperature 70 °C
Product type dual monostable multivibrator
Enclosure PDIP-16
Logistics
Property Value
Customs tariff number 85423390
Original Packaging Bar with 25 pieces
Country of origin MX
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
