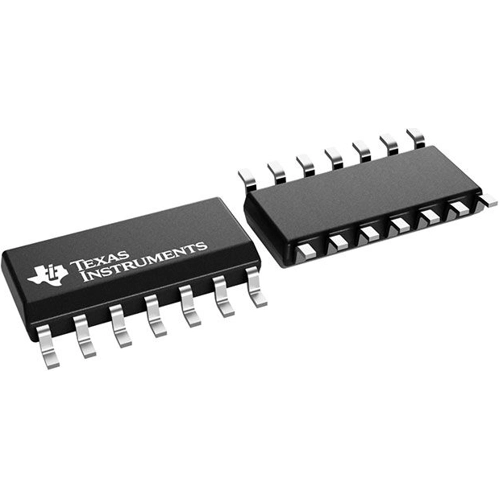

Hex schmitt trigger inverter, with schmitt trigger inputs, SOIC-14, Texas Instruments SN74LS14D
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.8449 € *
Standard delivery time from the manufacturer is: 1 Week
Bipolar Inverter, SN74LS14D, Texas Instruments
Each circuit in the SNx414 and SN74LS14D functions as an inverter. Due to the Schmitt-trigger action, it has different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. The circuit is temperature-compensated and can be triggered by very slow input ramps while still providing clean, jitter-free output signals.
Features
- Operation From Very Slow Edges
- Improved Line-Receiving Characteristics
- High Noise Immunity
Applications
- HVAC Gateways
- Residential Ductless Air Conditioning Outdoor Units
- Robotic Controls
- Industrial Stepper Motors
- Wireless Headsets, Keyboards, and Mice
- Wireless Headsets, Keyboards, and Mice
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | hex schmitt trigger inverter | |
| Version | with schmitt trigger inputs | |
| Enclosure | SOIC-14 | |
| Assembly | SMD | |
| Number of channels | 6 | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414900 |
| MSL | MSL 1 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
