SN74LS02N | Texas Instruments

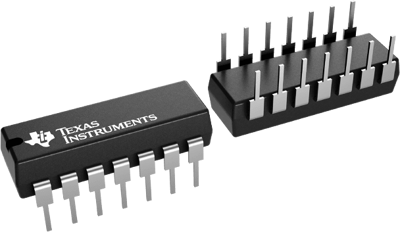

Quadruple 2 inputs positive NOR gate, PDIP-14, Texas Instruments SN74LS02N
Unit Price (€ / pc.)
0.714 € *
Standard delivery time from the manufacturer is: 1 Week
NOR gate, SN74LS02N, Texas Instruments
The SN74LS02N contains four independent 2-input NOR gates and is characterized for operation from 0°C to 70°C.
Features
- Dependable quality and reability
- Package options include plastic small outline, ceramic chip carriers, flat packages, plastic and ceramic DIPs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | quadruple 2 inputs positive NOR gate | |
| Enclosure | PDIP-14 | |
| Assembly | THT | |
| Input voltage | 5.25 V | |
| Output current | 16 mA | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bar with 25 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
