CD74HC4053PWR | Texas Instruments

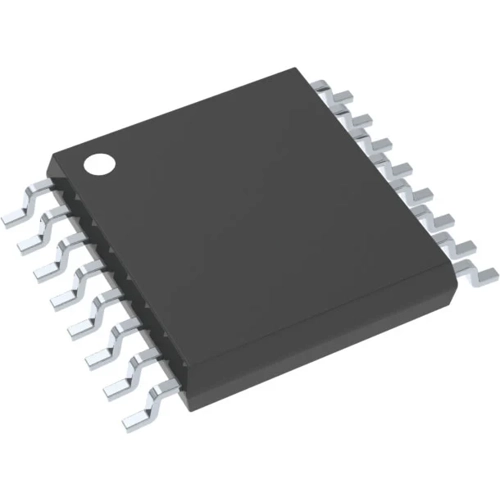

3 channel analog switch, with 5 V, 2:1, TSSOP-16, Texas Instruments CD74HC4053PWR
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2307 € *
Available in 5 Days: 500 pcs. - if ordered today
3-channel analog switch, CD74HC4053PWR, Texas Instruments
The CD74HC4053PWR device is a digitally controlled analog switch that uses silicon gate CMOS technology to achieve an operating speed similar to LSTTL with the low-power consumption of a standard CMOS integrated circuit. This analog multiplexer and demultiplexer controls an analog voltage that may vary across the voltage supply range (for example, VCC to VEE). It is a bidirectional switch that allows an analog input to be used as an output and vice versa. The switch has low ON resistance and low OFF leakage. In addition, this device has an enable control that, when high, disables the switch to its OFF state.
Features
- Low crosstalk between switches
- Fast switching and propagation speeds
- Break-before-make switching
Applications
- Digital radio
- Signal gating
- Factory automation
- Televisions
- Appliances
- Programmable logic circuits
- Sensors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | 3 channel analog switch | |
| Version | with 5 V, 2:1 | |
| Enclosure | TSSOP-16 | |
| Assembly | SMD | |
| Number of channels | 3 | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Country of origin | US |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
