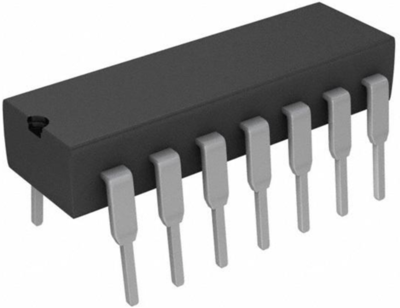

UA723CN | Texas Instruments
Voltage regulators, 2 to 37 VDC, 150 mA, positive, PDIP-14, UA723CN
Order No.: 49S8800
EAN: 4099879101006
MPN:
UA723CN
Unit Price (€ / pc.)
0.6188 € *
Standard delivery time from the manufacturer is: 12 Weeks
Voltage regulator, UA723CN, TI
The UA723CN is a precision integrated-circuit voltage regulator, featuring high ripple rejection, excellent input and load regulation, excellent temperature stability, and low standby current. The circuit consists of a temperature-compensated reference-voltage amplifier, an error amplifier, a 150-mA output transistor, and an adjustable-output current limiter.
Features
- Direct replacement for fairchild µA
- Input voltages up to 40 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | PDIP-14 | |
| Version | adjustable | |
| Number of Regulators | 1 | |
| Input voltage AC | 9.5 to 40 V | |
| Output voltage DC | 2 to 37 VDC | |
| Output current | 150 mA | |
| Polarity | positive | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
