SN75182N | Texas Instruments

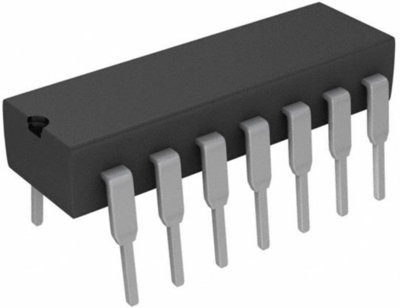

Dual differential line receiver, PDIP-14, Texas Instruments SN75182N
Unit Price (€ / pc.)
5.8072 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.81 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8072 €
50 pcs.
5.6525 €
250 pcs.
5.5454 €
*incl. VAT plus shipping costs
Subject to prior sale
Dual Differential Line Receiver, SN75182N, Texas Instruments
The SN75182N is a dual differential Line Receiver designed to sense small differential signals in the presence of large common-mode noise. This device gives TTL-compatible output signals as a function of the polarity of the differential input voltage. The frequency response of each channel can be easily controlled by a single external capacitor to provide immunity to differential noise spikes. The output goes to a high level when the inputs are open circuited. A strobe input (STRB) is provided that, when in the low level, disables the receiver and forces the output to a high level.
Features
- Single 5-V Supply
- Differential Line Operation
- Dual Channels
- TTL Compatibility
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 4.5-5.5 V | |
| Number of channels | 2 | |
| Enclosure | PDIP-14 | |
| Assembly | THT | |
| Version | receiver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
