0563 2417 | Testo
Testo vane anemometer, 0563 2417, testo 417 Set 2
Order No.: 22K8636
EAN: 4029547025822
MPN:
0563 2417
testo 417 Set 2
Unit Price (€ / pc.)
622.37 € *
Available: 0 pcs.
Leadtime: On Request **

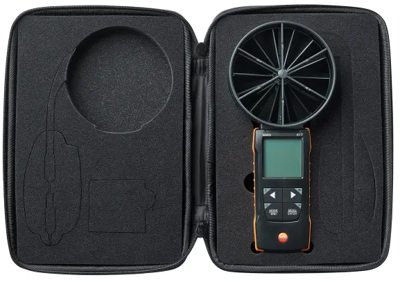

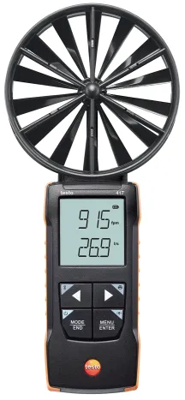

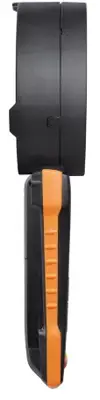

Vane anemometer, 0563 2417, Testo

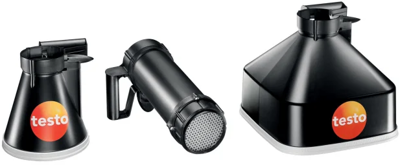

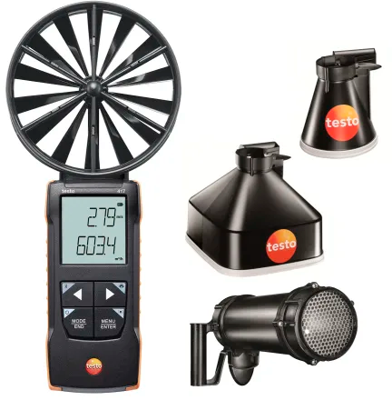

The compact vane anemometer including two measurement funnels and a flow straightener was developed to make it as easy as possible for you to take measurements on air inlets and outlets as well as plate and swirl outlets of air conditioning and ventilation systems. The integrated 100 mm vane quickly ensures precise results. Time and point average values as well as the volume flow are automatically calculated in the instrument and shown on the display. This allows balanced residential ventilation systems to be adjusted particularly efficiently - including quick documentation with the testo Smart App.
Features
- Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the Smart App
- Fast in-app configuration, graph history, second screen and measurement data memory in the Smart App
- Timed and point mean value calculation
Technical specifications
| Resolution | 0.1 °C, 0.01 m/s, 0.1 m³/h to 1 m³/h | |
| Version | vane anemometer | |
| Accuracy | ±0.5 °C, ±0.1 m/s + 1.5 % | |
| max. operating temperature | 50 °C | |
| min. operating temperature | -20 °C | |
| Degree of protection (IP) | IP20/IP40 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90268020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
