0563 0510 | Testo
Pressure gauge set, 0 °C, 50 °C, 1 Pa
Active
Product by Testo at Bürklin Elektronik

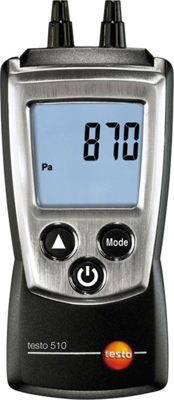

Differential pressure meter Testo 510
For precise and temperature compensated measurement of differential pressure, display in Pascal unit across the entire measuring range, flow measurement in combination with a pitostatic tube, air density compensation for precise measured values, magnets at the rear side of the instrument allow free-hand operation
Measuring range: 0 to 100 hPa
Resolution: 0.01 hPa
Tolerance: ±0.03 hPa (0 to 0.30 hPa), ±0.05 hPa (0.31 to 1.00 hPa), ±0.1 hPa +1.5% from average (1.01 hPa to 100 hPa)
Operating temperatures: 0 to +50 °C
Dimensions (including the protective cap): 119 x 46 x 25 mm
| Resolution | 0.01 mbar | |
| Version | Pressure gauge | |
| Accuracy | ±1.5 % | |
| max. operating temperature | 50 °C | |
| measurement range | 0 to 100 hPa | |
| min. operating temperature | 0 °C | |
| Degree of protection (IP) | IP40 |
| Country of origin | CN |
| Customs tariff number | 90262020 |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 7/1/06 |
| SVHC free | Yes |
