100017243 | Telegärtner

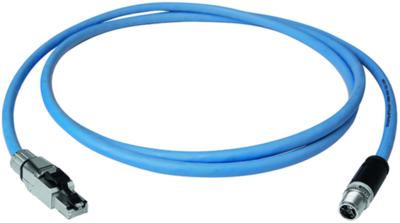

Sensor actuator cable, M12-cable plug, straight to RJ45-cable plug, straight, 8 pole, 3 m, X-FRNC, blue, 100017243
Unit Price (€ / pc.)
98.0084 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
98.01 € *
Price list
Quantity
Price per unit*
1 pcs.
98.0084 €
2 pcs.
91.6895 €
5 pcs.
86.1322 €
10 pcs.
80.0632 €
*incl. VAT plus shipping costs
Subject to prior sale
Connecting cable, 100017243, Telegärtner

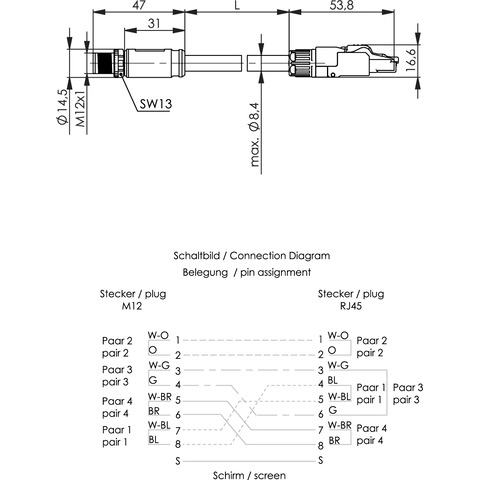

M12x1 X-coded cable plug to RJ45 (MFP8 IE) cable plug, AWG 24/19, S/FTP, X-FRNC, Cat.6A, Color: black/blue, Length: 3 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable length | 3 m | |
| Colour | blue | |
| LED display | No | |
| max. Voltage | 60 V | |
| Degree of protection (IP) | IP20/IP67 | |
| Connection (2) | RJ45-cable plug, straight | |
| Pin number | 8 pole | |
| Material | X-FRNC | |
| Connection (1) | M12-cable plug, straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
