100023263 | Telegärtner

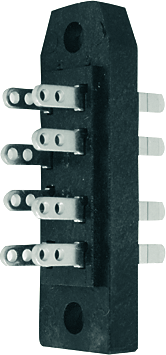

Pin header, 20 pole, pitch 3 mm, straight, black, 100023263
Unit Price (€ / pc.)
8.1515 € *
Available: 12 pcs.
Total Price:
8.15 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1515 €
10 pcs.
7.5684 €
25 pcs.
7.0567 €
50 pcs.
6.4141 €
*incl. VAT plus shipping costs
Subject to prior sale
Female and male connectors to DIN 41622, type Telegärtner J0004.

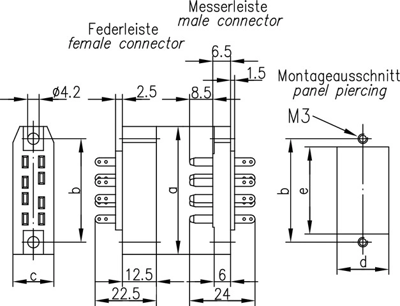

With silver-plated contacts. Insulating parts made of glass fiber-reinforced polycarbonate, black; Connections: tinned solder terminals. Contact arrangement: asymmetric. Test class to DIN IEC 60068-1: 40/085/21. Breakdown voltage: 1500 VRMS/50 Hz. Operating current (20 °C): 8.0 A. Operating voltage: 380 VAC/450 VDC. Useful life: 500 insertion/removal cycles. Dimensions: a 83, b 74, c 15, d 14, e 68 mm.
Male connectors.
Technical attributes (type, number of poles, housing size): J00045A0916, 20 - pole, 4
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 8 A | |
| Rated voltage | 380 V | |
| Version | pin header | |
| Number of rows | 2 | |
| Orientation | straight | |
| Additional parts | equipped | |
| contact surface | silver-plated | |
| Pin number | 20 pole | |
| Grid | 3 mm | |
| Type of locking | No | |
| Contact type | pin | |
| Colour | black | |
| Connection plating | tin-plated | |
| Connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
