100023255 | Telegärtner

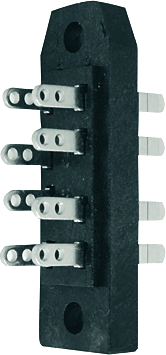

Socket header, 30 pole, pitch 3 mm, straight, black, 100023255
Unit Price (€ / pc.)
21.7651 € *
Available: 3 pcs.
Total Price:
21.77 € *
Price list
Quantity
Price per unit*
1 pcs.
21.7651 €
10 pcs.
20.2062 €
25 pcs.
18.8615 €
50 pcs.
17.1479 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connectors to DIN 41622, type Telegärtner J0004.
With silver-plated contacts. Insulating parts made of glass fiber-reinforced polycarbonate, black; Connections: tinned solder terminals. Contact arrangement: asymmetric. Test class to DIN IEC 60068-1: 40/085/21. Breakdown voltage: 1500 VRMS/50 Hz. Operating current (20 °C): 8.0 A. Operating voltage: 380 VAC/450 VDC. Useful life: 500 Insertion/removal cycles. Dimension: a 83, b 74, c 20, d 19, e 68 mm.
Female connectors.
Type: J00042A0919, 30 - pole, size 5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 8 A | |
| contact surface | silver-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Grid | 3 mm | |
| Orientation | straight | |
| Rated voltage | 380 V | |
| Connection | PCB connection | |
| Pin number | 30 pole | |
| Version | socket header | |
| Type of locking | No | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
