100023250 | Telegärtner

Socket header, 12 pole, pitch 3 mm, straight, black, 100023250

Order No.: 56F105
EAN: 4018359098827
MPN:
100023250
J00041A0913
Series: DataVoice

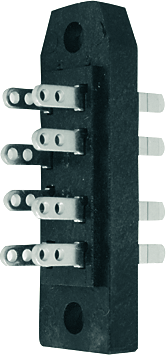

100023250 Telegärtner PCB Connection Systems Image 1
100023250 Telegärtner PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
10.0198 € *
Available: 19 pcs.
Total Price:
10.02 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0198 €
10 pcs.
9.1392 €
50 pcs.
8.4014 €
150 pcs.
7.7826 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connectors to DIN 41622, type Telegärtner J0004.

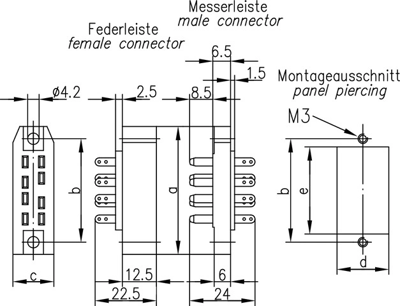

With silver-plated contacts. Insulating parts made of glass fiber-reinforced polycarbonate, black; Connections: tinned solder terminals. Contact arrangement: asymmetric. Test class to DIN IEC 60068-1: 40/085/21. Breakdown voltage: 1500 VRMS/50 Hz. Operating current (20 °C): 8.0 A. Operating voltage: 380 VAC/450 VDC. Useul life: 500 Insertion/removal cycles. Dimension: a 9, b 50, c 15, d 14, e 43 mm.

Female connectors.

Type: J00041A0913, 12 - pole, size 2

Technical specifications
Filter Property Value
Rated voltage 380 V
Rated current 8 A
Type of locking No
Grid 3 mm
Connection plating tin-plated
Number of rows 2
Orientation straight
contact surface silver-plated
Version socket header
Colour black
Connection PCB connection
Pin number 12 pole
Additional parts equipped
Contact type socket
Logistics
Property Value
Country of origin IT
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
