100023632 | Telegärtner

BNC surge arrester, 150-250 VDC, 100023632

Order No.: 80F1199
EAN: 4018359367053
MPN:
100023632
J01007A0002
Series: COAX

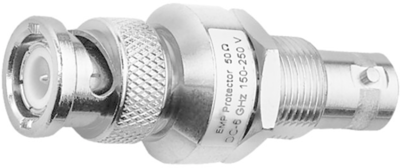

100023632 Telegärtner Overvoltage Protection Image 1

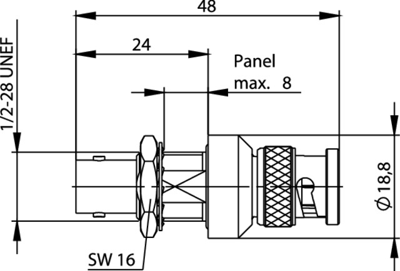

100023632 Telegärtner Overvoltage Protection Image 2
Image may differ
Unit Price (€ / pc.)
113.5498 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
113.55 € *
Price list
Quantity
Price per unit*
1 pcs.
113.5498 €
2 pcs.
108.3138 €
5 pcs.
103.5300 €
10 pcs.
96.4376 €
*incl. VAT plus shipping costs
Subject to prior sale

Coaxial adapter, J01007A0002, Telegärtner

BNC surge suppressor

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.

FEATURES

  • BNC (f)/BNC (m)
  • Max. Frequency 4 GHz

Technical Data

  • Design: straight
  • Impedance: 50 Ω
Technical specifications
Filter Property Value
Assembly plug-in assembly
Version BNC surge arrester
Voltage 150-250 VDC
Connection BNC plug-jack
Logistics
Property Value
Country of origin DE
Customs tariff number 85363010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
