100022937 | Telegärtner

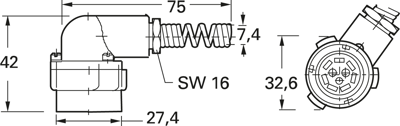

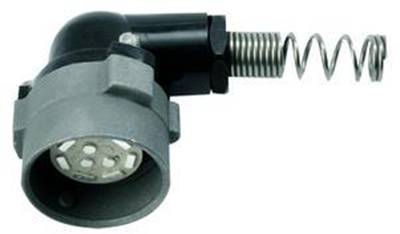

Plug, 10 pole, solder cup, bayonet locking, angled, 100022937
Unit Price (€ / pc.)
38.6274 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
38.63 € *
Price list
Quantity
Price per unit*
1 pcs.
38.6274 €
5 pcs.
36.6282 €
10 pcs.
34.2720 €
25 pcs.
31.2494 €
*incl. VAT plus shipping costs
Subject to prior sale
NF connector, 100022937, Telegärtner
LF straight plug 10-pin for cable ø 5.5 with bayonetring and metal backpart. This product is mainly used in communication equipments (e. g. for connecting handsets, headphones and microphones).
Features
- Waterproof
- Bajonet locking system
- Rigid contacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Pin number | 10 pole | |
| Orientation | angled | |
| Contact connection | solder cup | |
| Type of locking | bayonet locking | |
| Cable diameter | 5.5 mm | |
| Additional parts | equipped | |
| contact surface | silver-plated | |
| Shell Material | copper alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
