100022934 | Telegärtner

Plug, 10 pole, solder cup, bayonet locking, angled, 100022934

Order No.: 72F205
EAN: 4018359089467
MPN:
100022934
J00014A0586
Series: DataVoice

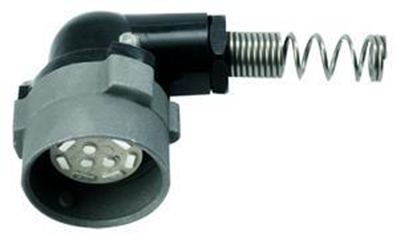

100022934 Telegärtner Other Circular Connectors Image 1
100022934 Telegärtner Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
64.6289 € *
Available: 8 pcs.
Total Price:
64.63 € *
Price list
Quantity
Price per unit*
1 pcs.
64.6289 €
2 pcs.
60.4639 €
5 pcs.
56.7987 €
10 pcs.
52.8003 €
*incl. VAT plus shipping costs
Subject to prior sale

NF connector, 100022934, Telegärtner

LF angle plug 10-pin for cable ø 7.5 with stainless steel bayonetring and POM backpart. This product is mainly used in communication equipments (e. g. for connecting handsets, headphones and microphones).

Features

  • Waterproof
  • Bajonet locking system
  • Rigid contacts
Technical specifications
Filter Property Value
Contact connection solder cup
contact surface silver-plated
Shell Material copper alloy
Additional parts equipped
Cable diameter 7.5 mm
Orientation angled
Pin number 10 pole
Version plug
Type of locking bayonet locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
