100022933 | Telegärtner

Name: Plug, 10 pole, solder cup, Bayonet locking, straight, 100022933
Brand: Telegärtner
SKU: 72F200
Price: 61.15 EUR
Availability: InStock

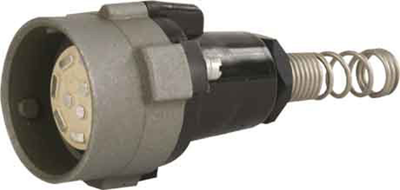

Plug, 10 pole, solder cup, Bayonet locking, straight, 100022933

Order No.: 72F200

MPN:

100022933

J00014A0585

Series: DataVoice

EAN: 4018359089450

Images may differ

Key Specification:

Version plug

Pin number 10 pole

Orientation straight

Contact connection solder cup

Show 2 variants

Technical specifications Download Datasheet

Unit Price (€ / pc.)

61.1541 € *

Available: 17 pcs.

Leadtime: On Request **

Total Price:

61.15 € *

Quantity

Price per unit*

1 pcs.

61.1541 €

5 pcs.

57.4889 €

15 pcs.

55.2874 €

50 pcs.

52.8360 €

150 pcs.

50.6345 €

*incl. VAT plus shipping costs

**Subject to prior sale

Add to comparison list Print

Description

NF connector, 100022933, Telegärtner

LF straight plug 10-pin for cable ø 7.5 with stainless steel bayonetring and POM backpart. This product is mainly used in communication equipments (e. g. for connecting handsets, headphones and microphones).

Features

Waterproof
Bajonet locking system
Rigid contacts

Technical specifications

Show similar products (0)

Download

Technical Data Sheet - EN

Technical Data Sheet

Declaration of Conformity - EN

Declaration of Conformity

Technical Data Sheet - DE

Technical Data Sheet

Declaration of Conformity - DE

Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,88 €
Switzerland	1-2	16,40 €	19,52 €

	Version	plug
	Additional parts	equipped
	Shell Material	copper alloy
	Cable diameter	7.5 mm
	Contact connection	solder cup
	contact surface	silver-plated
	Orientation	straight
	Pin number	10 pole
	Type of locking	Bayonet locking
