100022929 | Telegärtner

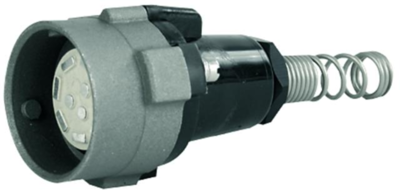

Plug, 10 pole, solder cup, bayonet locking, straight, 100022929
Order No.: 80F0976
EAN: 4018359089375
MPN:
100022929
J00014A0000
Unit Price (€ / pc.)
69.2818 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
69.28 € *
Price list
Quantity
Price per unit*
1 pcs.
69.2818 €
2 pcs.
64.8193 €
5 pcs.
60.8923 €
10 pcs.
56.5964 €
*incl. VAT plus shipping costs
Subject to prior sale
NF connector, 100022929, Telegärtner
LF straight plug 10-pin for cable ø 5.5 with stainless steel bayonetring and metal backpart. This product is mainly used in communication equipments (e. g. for connecting handsets, headphones and microphones).
Features
- Waterproof
- Bajonet locking system
- Rigid contacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable diameter | 5.5 mm | |
| Type of locking | bayonet locking | |
| contact surface | silver-plated | |
| Contact connection | solder cup | |
| Pin number | 10 pole | |
| Version | plug | |
| Additional parts | equipped | |
| Shell Material | copper alloy | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
