100022928 | Telegärtner

Jack, 10 pole, solder cup, bayonet locking, straight, 100022928

Order No.: 72F2101
EAN: 4018359089368
MPN:
100022928
J00010A0590
Series: DataVoice

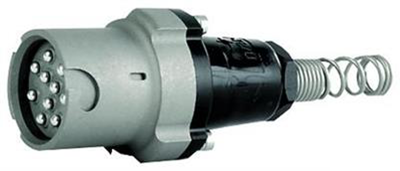

100022928 Telegärtner Other Circular Connectors Image 1
100022928 Telegärtner Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
88.2861 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
88.29 € *
Price list
Quantity
Price per unit*
1 pcs.
88.2861 €
2 pcs.
82.5860 €
5 pcs.
77.5880 €
10 pcs.
72.1259 €
*incl. VAT plus shipping costs
Subject to prior sale

NF connector, 100022928, Telegärtner

LF straight jack 10-pin for cable ø 7.5 with stainless steel bayonetring and POM backpart. This product is mainly used in communication equipments (e. g. for connecting handsets, headphones and microphones).

Features

  • Waterproof
  • Bajonet locking system
  • Double spring loaded contacts
Technical specifications
Filter Property Value
Contact connection solder cup
Shell Material copper alloy
Cable diameter 7.5 mm
Orientation straight
Additional parts equipped
Version jack
Pin number 10 pole
Type of locking bayonet locking
contact surface silver-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
