100022925 | Telegärtner
Socket, 10 pole, solder cup, bayonet locking, straight, 100022925
Order No.: 80F0975
EAN: 4018359089320
MPN:
100022925
J00010A0000
Unit Price (€ / pc.)
92.3440 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
92.34 € *
Price list
Quantity
Price per unit*
1 pcs.
92.3440 €
2 pcs.
86.3940 €
5 pcs.
81.1580 €
10 pcs.
75.4341 €
*incl. VAT plus shipping costs
Subject to prior sale

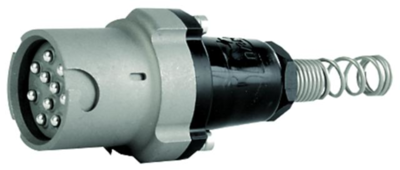

NF connector, 100022925, Telegärtner
LF straight jack 10-pin for cable ø 5.5 with stainless steel bayonetring and metal backpart. This product is mainly used in communication equipments (e. g. for connecting handsets, headphones and microphones).
Features
- Waterproof
- Bajonet locking system
- Double spring loaded contacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| contact surface | silver-plated | |
| Shell Material | copper alloy | |
| Additional parts | equipped | |
| Cable diameter | 5.5 mm | |
| Orientation | straight | |
| Pin number | 10 pole | |
| Version | socket | |
| Type of locking | bayonet locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
