100023150 | Telegärtner

T-adapter, 100023150, TELEGÄRTNE

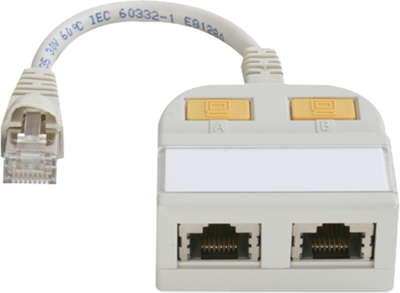

T-adapter S, 2x10/100BT light grey RAL 7035. The adapter, which is built into a plastic housing, divides an attached 8-wire RJ45 output into two sockets, each of which then has 4-wire pin assignment. The 15 cm long connecting cable is provided with an RJ45 plug which is inserted into the output of the box and/or the distributor. The connecting cables to the subscriber and/or to the next distributor socket are then inserted into the two RJ45 sockets at the adaptor output. The outputs to the subscribers are marked by coloured mounting symbols for data and/or telephone connections. A labelling plate under a transparent cover offers space for marking the outputs.

On the underside of the adaptor housing there is a label with information on the pin assignment so that the distributor structure can be precisely traced in case additional action is required. The Modular T-Adaptors make it possible to duplicate connections without having to intervene in the existing network structures with cable sharing.

Features

• Halogen-free
• Indication of the outputs by plug-in symbols for data and telephone application
• Label with wiring scheme at the bottom
• Marking label with transparent plastic cover
