100022949 | Telegärtner
Socket, RJ45, 8 pole, 8P8C, Cat 6A, IDC connection, flange mounting, 100022949
Unit Price (€ / pc.)
37.9610 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
37.96 € *
Price list
Quantity
Price per unit*
1 pcs.
37.9610 €
5 pcs.
35.9975 €
10 pcs.
33.6770 €
25 pcs.
30.7020 €
*incl. VAT plus shipping costs
Subject to prior sale
Modular connector, RJ connector, J00020A0436, Telegärtner

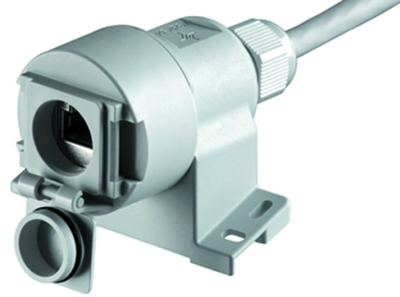

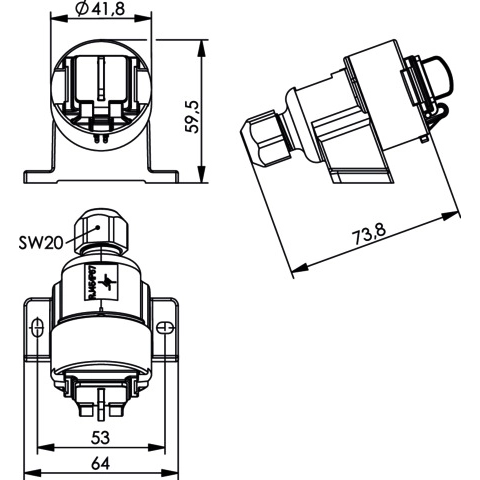

STX V6 surface mounting outlet Cat.6A
Connector for modern industrial applications need to be designed in such a way that they simplify processes and cope with faster data transmission. The connector of Variant 6 are standardized in the IEC 61076-3-106, designed to meet the demands of harsh industrial environments, guaranteeing protection class IP67 when mated. The locking clasps allow easy, tool-less opening as well as a secure locking with protection class IP67. The RJ45 plug and bulkhead inserts stand out due to high power reserves and offer transmission characteristics of Class EA acc. to ISO/IEC11801.
Features
- Variant 6 acc. to IEC 61076-3-106
- 8-way contact for 10 Gigabit-Ethernet
- easily opened, re-usable modules
- connection of commercially available RJ45 plugs is possible (IP20 protection)
Technical Data
- Connector type: RJ45 8(8)
- Design: Jack
- Suitable for round cable: No
- Suitable for flat cable: No
- Suitable for solid conductors: Yes
- Colour: silver
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pole image | 8P8C | |
| Assembly | flange mounting | |
| RJ-Version | RJ45 | |
| Pin number | 8 pole | |
| Version | socket | |
| Category | Cat 6A | |
| Connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
