100023276 | Telegärtner

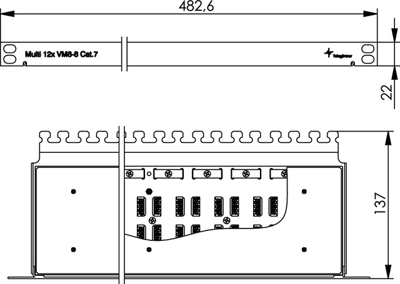

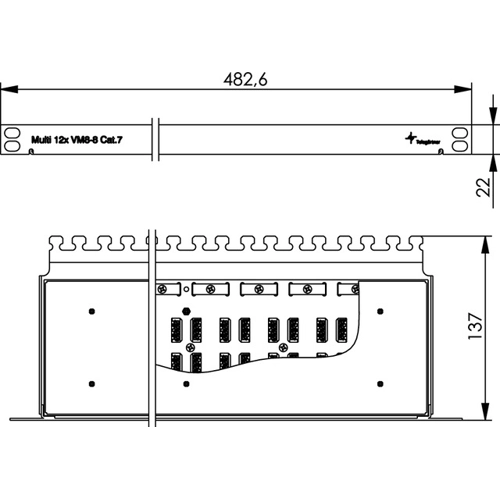

Connection module, 19 inches 1/2 U, Cat. 7A, (W x H x D) 482.6 x 22 x 137 mm, light gray, 100023276
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
202.9307 € *
Standard delivery time from the manufacturer is: On Request
Connecting module, Patch distributor, J00060A0072, Telegärtner

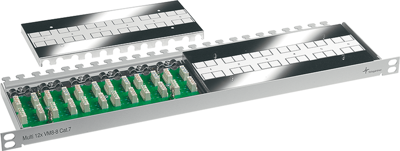

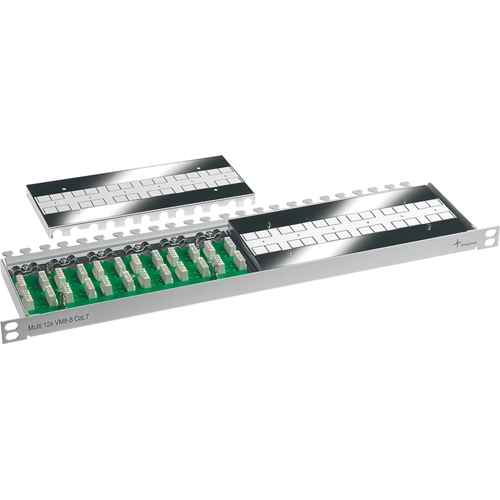

19" 1/2 HU Multi Connection Module Cat.7A light gray RAL 7035.
Features
- 1/2 HU 19" insert housing made of sheet steel, powder-coated, RAL7035 light gray
- Cable extensions require no additional space in the floor distributor because of the space saving 1/2 HU construction
- A maximum of 12 incoming and 12 outgoing cables
- Cable strain relief using commercially available cable ties (VM 8-8 Cat.7A)
- Tool-free installation of shielding cover made of stainless steel (19" and wall mount version)
- Surface mount, 19", and basic (for loose connection) version: incoming and outgoing cables offset by 180 degrees
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | connection module | |
| Version | 19 inches 1/2 U, Cat. 7A | |
| Width | 482.6 mm | |
| Height | 22 mm | |
| Depth | 137 mm | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369001 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
